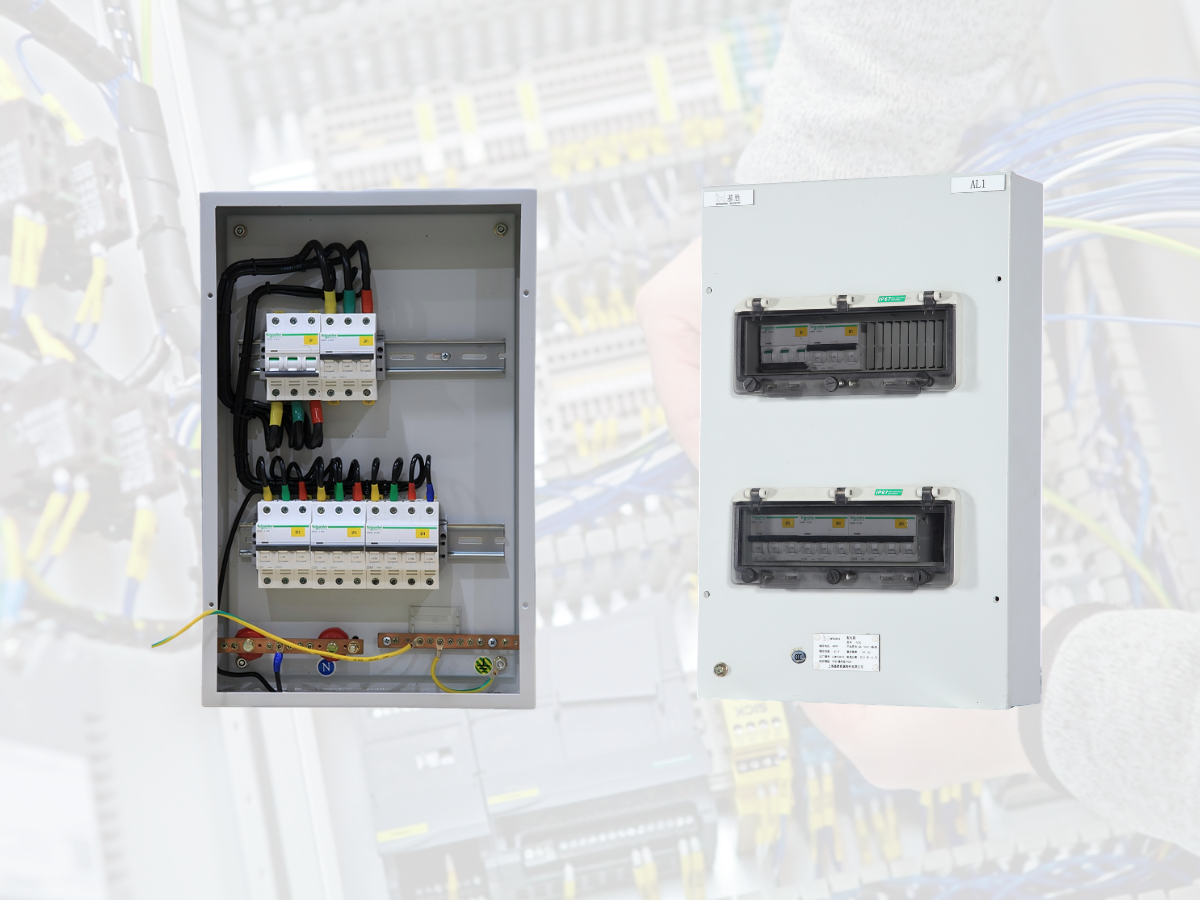

PZ30 Low Voltage Distribution Box
Product Overview
The PZ30 series is a terminal distribution enclosure designed to house miniature circuit breakers (MCBs), residual current circuit breakers (RCCBs), fuses, and other control devices for power distribution, metering, and control. It features a modular design, standard DIN-rail mounting, a modern lightweight appearance, and a compact internal layout.
Standards
- GB/T 7251.3-2023 Low-voltage switchgear and controlgear assemblies - Part 3: Distribution boards for operation by ordinary persons (DBO)
- GB/T 14048 Low-voltage switchgear and controlgear (series)
Technical Parameters
| Item | Value |
|---|---|
| Rated operating voltage | AC400V, AC230V |
| Rated insulation voltage | AC400V |
| Rated impulse withstand current | 5kA |
| Rated operating current | ≤80A |
| Rated frequency | 50Hz |
| Protection class | IP40 (Operating board)、IP20C、IP54 |
