Medium Voltage Switchgear

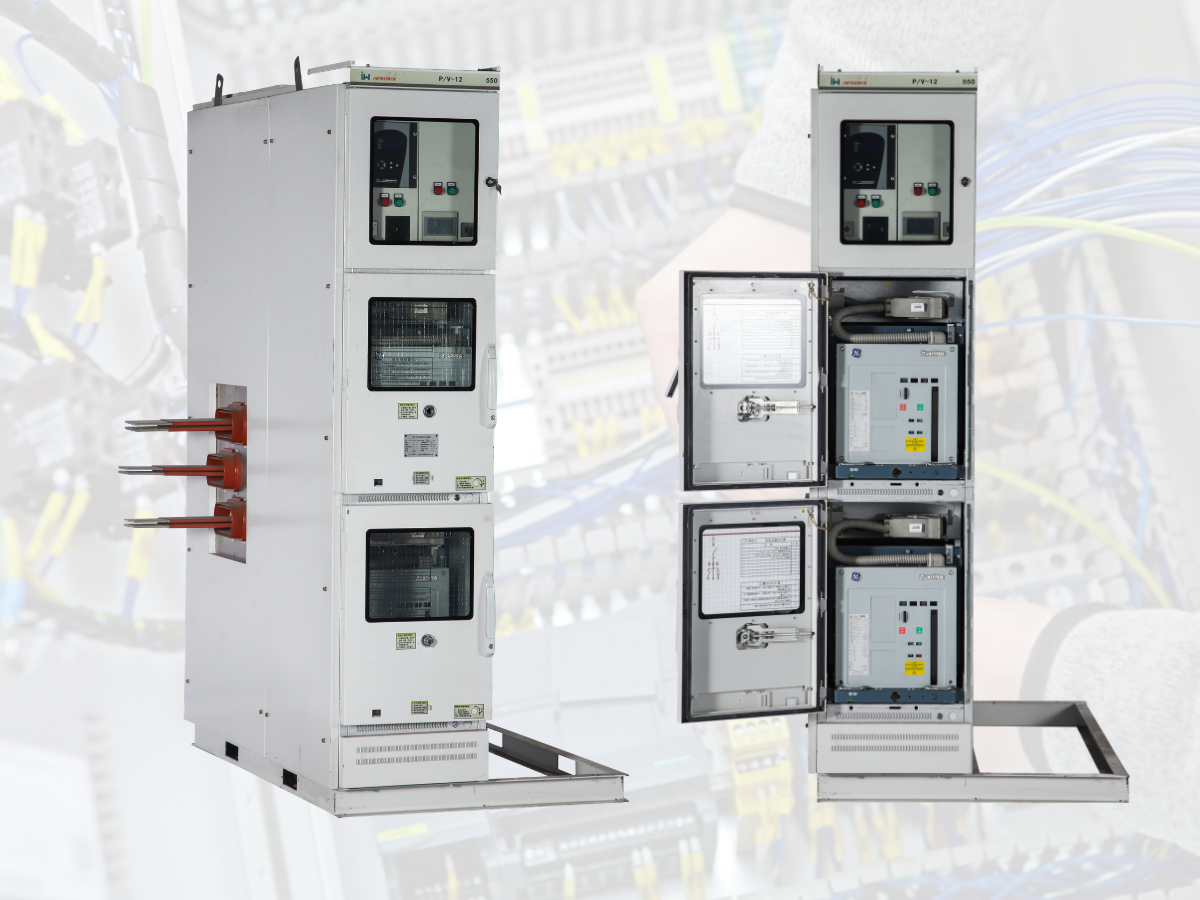

P/V-12(D)W550 Double-tier AC Metal-enclosed Switchgear
Product Overview
The P/V-12(D)W550 is a double-tier AC metal-enclosed switchgear for indoor installation in 30 kV, 50/60 Hz single-bus or sectionalized systems. It provides power receiving and distribution functions, along with circuit control, protection, and monitoring. Each unit is equipped with two vacuum circuit-breaker feeders.
Standards
- GB/T 3906-2020 3.6kV~40.5kV AC metal-enclosed switchgear and controlgear
- GB/T 11022-2020 Common technical requirements for high-voltage AC switchgear and controlgear standards
- DL/T 404-2018 3.6kV~40.5kV AC metal-enclosed switchgear and controlgear (power industry standard)
- IEC 62271-200:2024 High-voltage switchgear and controlgear - Part 200: AC metal-enclosed switchgear and controlgear for rated voltages above 1 kV and up to and including 52 kV
Technical Parameters
| Item | Value |
|---|---|
| Rated voltage | 12kV |
| Rated insulation level (1 min power-frequency withstand voltage) | 42kV |
| Rated insulation level (lightning impulse withstand voltage peak) | 75kV |
| Rated frequency | 50/60Hz |
| Rated main bus current | 1250A, 4000A |
| Rated branch bus current | 630A, 1250A |
| Rated short-time withstand current (4s) | 31.5kA |
| Rated peak withstand current | 80kA |
| Protection class | Enclosure IP4X, breaker room door open IP2X |
| Height | 2400 mm |
| Width | 550 mm |
| Frame depth | 1650 mm |
