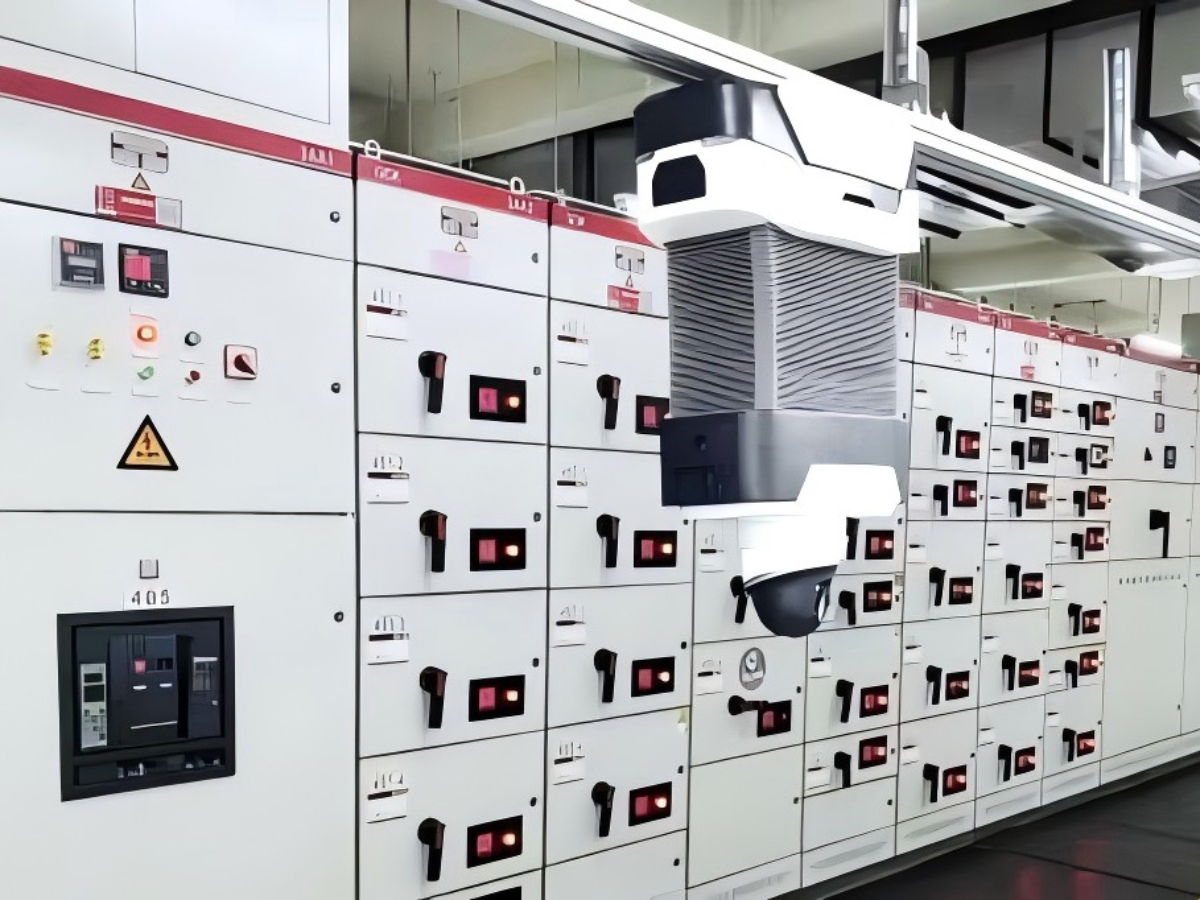

AI Inspection Robot
Product Overview
The AI inspection robot is an automated device designed for indoor substation environments, featuring a rail-mounted design. It integrates video surveillance, infrared thermometry, environmental sensing, and voice intercom to enable fully unmanned inspections.
Standards
- GB 50229-2019 Design fire protection standard for thermal power plants and substations
- GB/T 7261-201 Relay protection and safety automatic device basic test methods
- DL 5027-2015 Typical fire protection regulations for power equipment
Technical Parameters
| Category | Item | Standard Configuration | Optional Configuration |
|---|---|---|---|
| General Features | Overall Dimensions | 380(L)mm200(W)mm420(H)mm | |
| Total Weight | ≤10kg | ||
| Inspection Efficiency | 10s/inspection point | ||
| Switch/Meter Recognition Rate | ≥98% | ||
| Motion Performance | Max Walking Speed | 0.3m/s | |
| Emergency Braking Distance | 0.1m | ||
| Walking Positioning Accuracy | ≤±10mm | ||
| Max Lifting Stroke | 1.5m | ||
| Max Lifting Speed | 0.2m/s | ||
| Lifting Positioning Accuracy | ≤±10mm | ||
| Obstacle Detection | 3 sensors total at front, rear, and bottom; detection distance 1m, action distance 0.2m | ||
| Pan-Tilt Rotation Range | Horizontal ±180°, vertical ±90° | ||
| Pan-Tilt Rotation Accuracy | ≤0.2° | ||
| Functional Modules | Video Capture | 2MP / autofocus | 4MP, 16x digital zoom |
| Infrared Temperature Measurement | Infrared thermal imager, 384×288, ±2℃, focal length: 7mm | ||
| Environmental Monitoring | Temperature: 40℃~+80℃, humidity: 0.1~99.9%RH | ||
| Gas Detection | / | O₂、CO、CH₄、H₂S | |
| Power Supply Unit | Power Supply Mode | Continuous power supply through sliding contact line | |
| Conductor Rail | DC24V | ||
| Communication | Wired Communication | 100M sliding contact line power carrier | |
| Wireless Communication | Wi-Fi + 4G | ||
| Rail Unit | Turning Radius | 500mm | |
| Rail Type | Standard aluminum alloy profile | ||
| Rail Load | 100kg | ||
